Gtk 17S 60V 30Ah 40Ah 50Ah 60Ah 80ah 100Ah lithium ion li-ion battery pack for 1000W 2000W 3000w 4000W 5000W 6000W power supply

Description

Gtk 17S 60V 30Ah 40Ah 50Ah 60Ah 80ah 100Ah lithium ion li-ion battery pack for 1000W 2000W 3000w 4000W 5000W 6000W power supply
Specification:
Product description: the electricli-ionbattery pack (universal)
Product model: Fx60
60 v voltage capacity: 30/40/50/60/70/80/100Ah
Charging ways: Constant Voltage constant Current ( With71.4V lithium ion charger)
30Ah :150*165*250mm 7-8kg
40Ah :165*170*260mm below 9-10kg
50Ah : A size (160*135*355mm) About 12kg , B size (320*175*210 mm ) about 17KG
60Ah :140*210*400mm 19kg
70Ah :140*260*400mm 22kg
80Ah :160*200*400mm 16-18kg
100Ah :260*170*400mm 26kg
suitable for motor nominal power:1000w ,1500W ,2000w ,3000w, all excellent.
Battery type: lithium-ion batteries
Cycle life: More than 1500 times
Max continuous discharge current :100A(can customize)
Max instantaneous discharge current :200A(BMS is different according to the customers’ requirement, sometimes not match the Photoes)
Battery have overcharge, over discharge, over current, short circuit, charge equalization of automatic identification and protection circuit
Packing list:

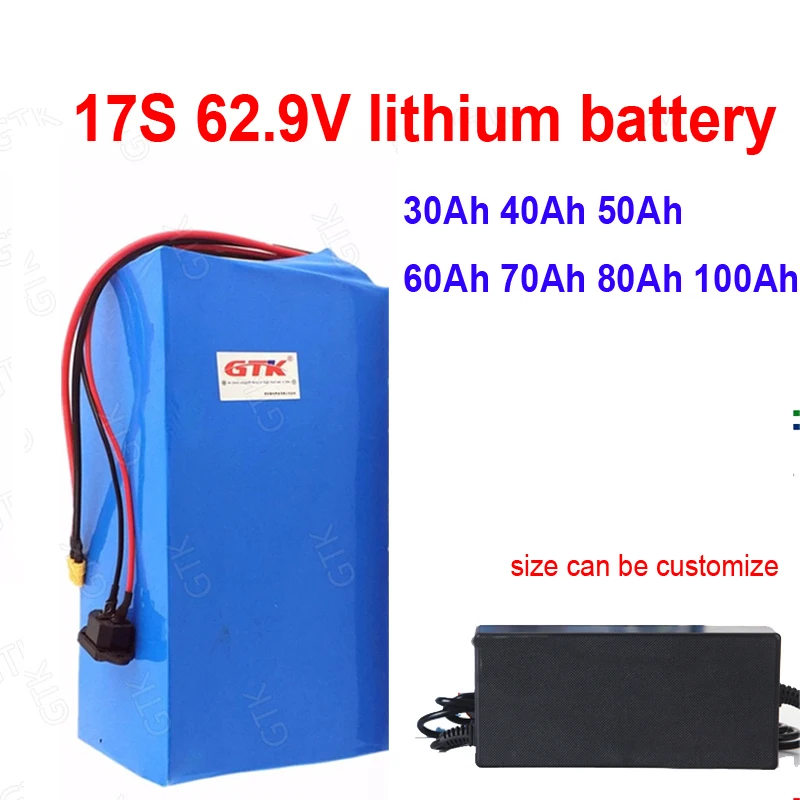

1. 17S 62.9V 30/40/50/60/70/80/100Ah power Li-ion Battery pack (Built-in high quality BMS board)
2. High quality Charger 30/40Ah (with 71.4V 5A charger ) 50/60/70/80/100Ah(with 71.4V 10A charger )
EU/AU/US /plug suit your country use .
Warnings:
Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.
Does not use or leave the battery near a heat source as fire or heater
Use the battery charger specifically for that purpose when recharging.
Do not reverse the position and negative terminals.
Do not connect the battery electrodes to an electrical outlet.
Do not discard the battery in fire or a heater.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects
Battery Quality:
1. Brand Cells – A grade cells to make sure batteries in high and full capacity
2. Protection – Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload
3. Compose Type : Injection Technology to make battery more stable
5. Long life cycle, No memory effect, environment friendly
Advantages:
1. High energy density
2. High working voltage for single battery cells
3. Pollution-free, environment friendly
4. Long cycle life; It extends its cycle life up to 800 cycles
5. Capacity, resistance, Voltage, platform time consistency is good
6. Simplifying battery management system (BMS) and a battery charger
7. With short-circuit production function, safe and reliable
8. Factory price & High quality
9. Fast charging
10. Light weight, small size
11. Large overcharge tolerance and safe performance
12. Self balance
Applications:
1. Light electric vehicles: such as electric bicycle, golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs
2. Large-scale electric vehicles: such as bus, electric car, tourist car and commix car
3. Electric tool: electric drill, electric saw, lawn mower
4. Remote control cars, boat, aircraft, toys,
5. Solar and wind power generation energy storage devices
Others:
1. OEM orders are available
2. Superior quality and cost-performance ratio
3. Tags, plugs and connectors are available
4. We could design and produce the battery pack with aluminum alloy shell and assembly procession for customized configurations is available (we could design Li-ion battery according to your product work performance & structure appearance
